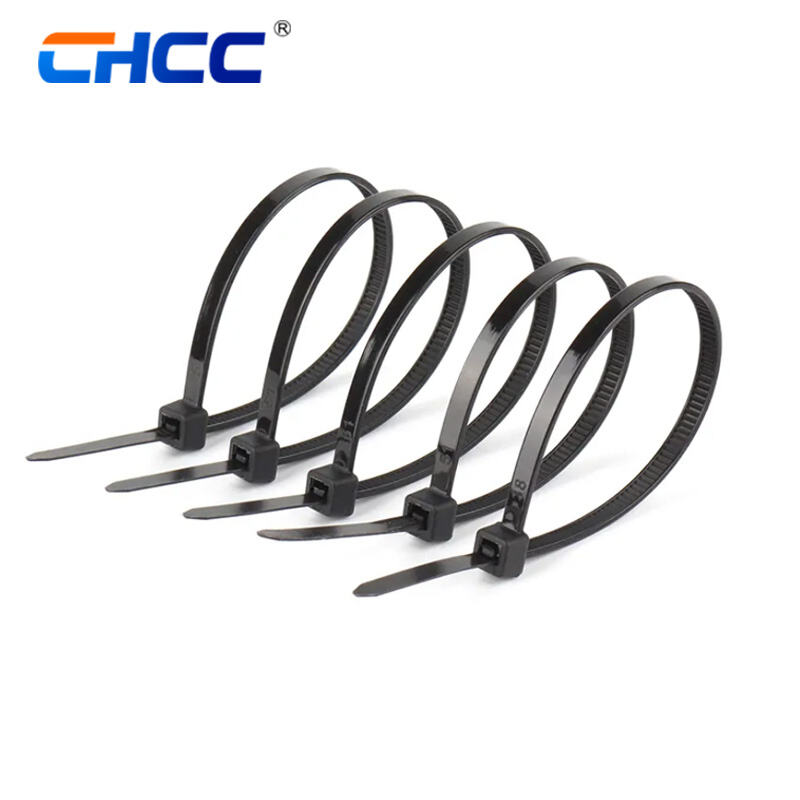

This 2.5 mm width self-locking nylon cable tie is made of high-quality PA66 material, featuring good toughness, heat resistance and anti-aging performance.Maximum tensile strength: up to 8 kg (18 lbs). With a stable self-locking design, it can be quickly installed and firmly locked without loosening. For indoor applications, natural color cable ties are recommended.For outdoor use, UV-resistant black cable ties are preferred for enhanced UV protection. It is lightweight, durable and easy to use, widely used for wire bundling, cable fixing and management in electronics, electrical, automotive, communication and other fields. Complete specifications and customizable colors are available.
·Made of premium nylon 66 material, the zip ties have good flexibility and resilience, avoiding easy breaking.
·Self-locking serrated structure, one-pull fastening, no tools required, ensuring quick and reliable bundling.
·High Insulation | Safe for Electrical Use
·Smooth Burr-Free | Protects Bundled Surfaces
·Working temperature from -20℃ to 85℃, suitable for indoor application express packaging, cable management.
·Multi-color options (black/white/red/blue) for easy classification,Can be directly used for classifying different wires and materials.
| Parameter | Value |
|---|---|
| Size | Width:2.5mm；Higth:60mm-200mm |
| Max Cable Bundle Diameter | 45 mm |
| Cable Tie Max Length | 1000 mm |
| Cable Tie Tensile Strength | 80 N |
| Material Composition | Nylon 6.6 |
| UV Resistance | IEC 60068-2-5 compliant (1000 hrs xenon arc exposure) |
| Operating Temperature Range | −20°C to +85°C |
| Flammability Rating | UL94 V-0 |
| Compliance Standards | RoHS, REACH , CE , SGS , ISO9001 |
| Color | Anthracite Gray (RAL 7016) |
| Packaging | 100pcs/bag |
| Custom | OEM & ODM is available |

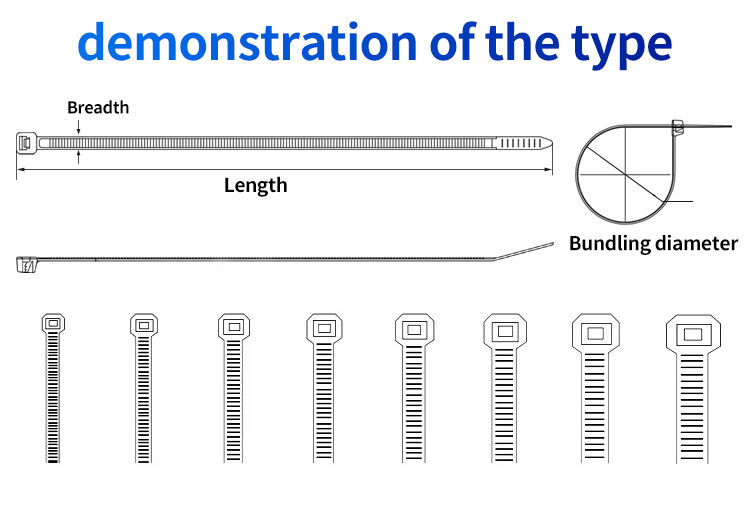

| Item no. | Width | Length | Bundle Diameter | Min.Tensile Strength | ||
| mm/inch | mm/inch | mm/inch | N | kg | lbs | |
| CHCC-2.5*60 | 2.5(0.098) | 60(2.36) | 2-11(0.078-0.43) | 80 | 8.2 | 18 |
| CHCC-2.5*80 | 2.5(0.098) | 80(3.15) | 2-16(0.078-0.63) | 80 | 8.2 | 18 |
| CHCC-2.5*100 | 2.5(0.098) | 100(3.94) | 2-22(0.078-0.87) | 80 | 8.2 | 18 |
| CHCC-2.5*120 | 2.5(0.098) | 120(4.72) | 2-30(0.078-1.18) | 80 | 8.2 | 18 |
| CHCC-2.5*150 | 2.5(0.098) | 150(5.91) | 2-35(0.078-1.38) | 80 | 8.2 | 18 |
| CHCC-2.5*200 | 2.5(0.098) | 200(7.87) | 3-52.5(0.11-2.07) | 80 | 8.2 | 18 |
| Other colors and sizes are available for customization. Feel free to contact us for your specific needs. | ||||||
